What is the Norwood scale?

The Norwood scale is a visual classification system that doctors use to sort male pattern hair loss into seven clearly described stages. It gives doctors, patients, research and transplant planning a shared vocabulary for a visible pattern.

What the scale depicts is the result of a hormonal process. In androgenetic alopecia, dihydrotestosterone (DHT) binds to the androgen receptor of genetically sensitive follicles at the forehead, the temples and the crown. Those follicles miniaturize: with every cycle the hair grows thinner, shorter and lighter until it stops coming back.

At the back and sides of the head the follicles remain largely DHT resistant, which is why hair stays there and why that region is the donor area (British Association of Dermatologists, patient information on male pattern hair loss). It is only because the loss always follows the same zones that it can be divided into stages at all.

Two directions of progression are typical: from the front across the temples as frontotemporal recession, in other words receding temples, and outward from the crown as a bald spot. In the higher Norwood stages the two fronts meet.

What the Norwood scale does not do: it identifies no cause, no pace and no point in time. It says nothing about hair density, hair caliber or the degree of miniaturization. It is a communication tool, not a diagnosis.

Norwood or Hamilton-Norwood scale? And what does Norwood scale mean?

Both terms describe the same classification. James B. Hamilton published the first systematic classification of the male hair loss pattern in 1951 in the Annals of the New York Academy of Sciences. O’Tar Norwood, a dermatologist and hair transplant surgeon, revised it in 1975 in the Southern Medical Journal based on 1,000 men he examined.

In doing so, Norwood added the separate vertex stage and the Type A variants. You will find the scale called “Norwood scale” as well as “Hamilton-Norwood scale”; clinically the two names mean exactly the same thing.

How to determine your own Norwood stage

For a reliable self-assessment on the Norwood scale you need three photos taken in the same light: forehead from the front, head from above, and profile. Anyone who only estimates their stage in the mirror almost always underestimates the crown, simply because they cannot see it.

The real trick lies in how the scale is built. Norwood defines the stages through two independent zones, the front hairline and the crown. If you assess both separately and then combine them, you land on the right stage far more reliably than by comparing rows of pictures.

Two notes on the matrix: if you see an evenly receding hairline without an M shape, the section on the Type A variant is the one for you. And the matrix classifies a visible pattern; it makes no diagnosis and does not capture miniaturization.

The most common mistake in self-assessment: a single photo shows a state, not a progression. Only the comparison of two photo sets taken 6 to 12 months apart shows whether hair loss is active, and that is precisely what decides whether you have a mature hairline or an early stage 2.

The second blind spot is miniaturization. Thinner, shorter and lighter hairs in one zone are an earlier signal than a visible gap, and they appear in no Norwood picture. A scalp magnifier or a physician’s trichoscopy makes them visible.

And the honest limitation: in a study in which 7 dermatologists and 16 residents classified 43 photos, agreement was insufficient (ICC 0.63 to 0.68, International Journal of Trichology 2009). Even the same raters arrived at different results after 3 months. So your self-assessment is a solid starting point, not a measurement.

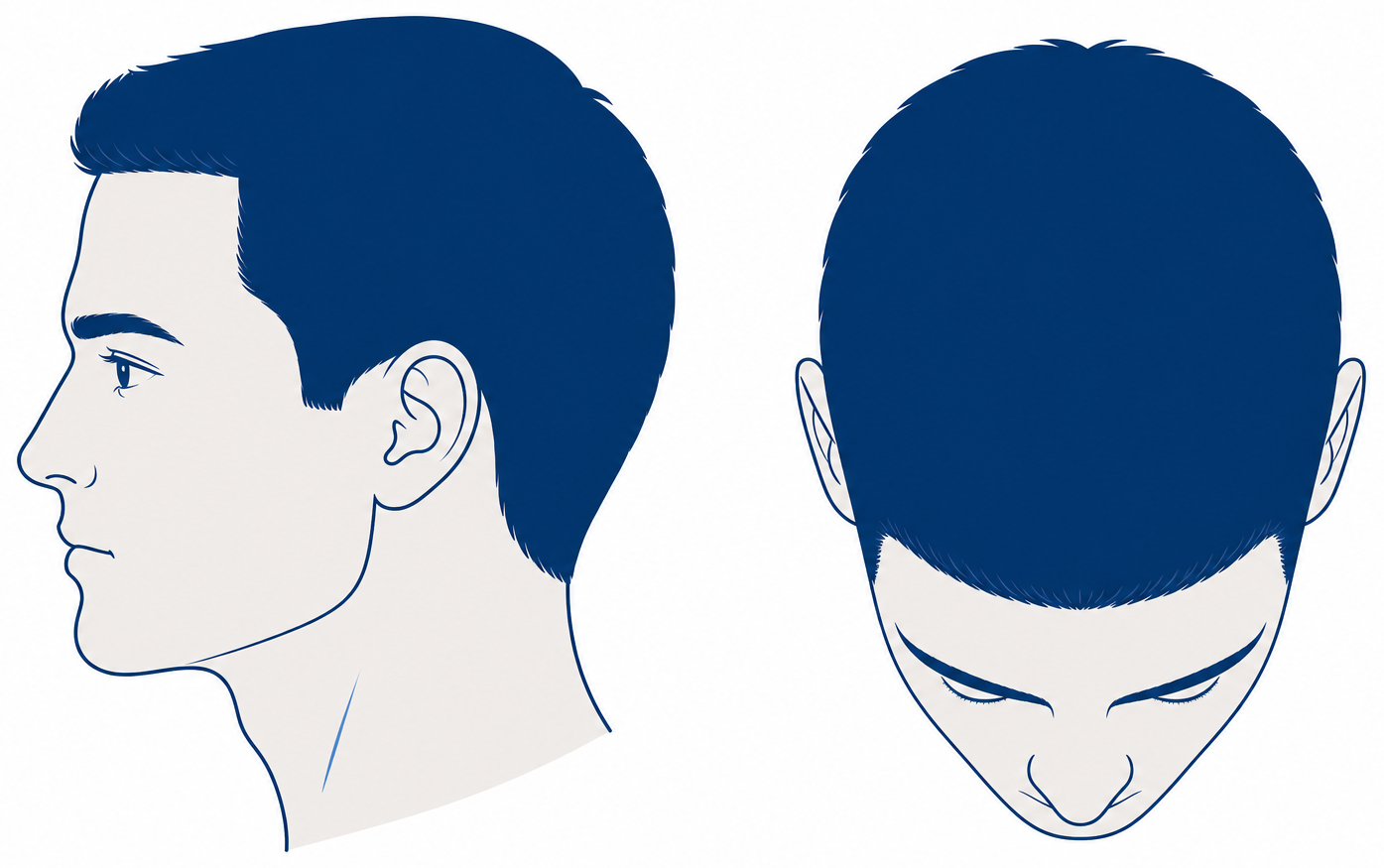

Norwood 1: the unchanged youthful hairline

Norwood 1 describes a hairline with no visible recession, the way it runs in adolescence. It is the reference stage of the scale and not a stage of hair loss.

In the mirror you see a straight or minimally curved line across the forehead, no wedge-shaped notch at the temples, and on the top-down photo a fully covered crown. In the Japanese cohort study of 5,372 men, the median age at stage I was 26 years (95 percent confidence interval 25 to 27). That is an observation in this cohort, not an expectation for you.

Graft requirement: none. At stage 1 there is no indication for a hair transplant. The sensible next step is undramatic but genuinely useful: take reference photos following the protocol above. If you document your baseline at 20, you can later show real changes instead of guessing at them.

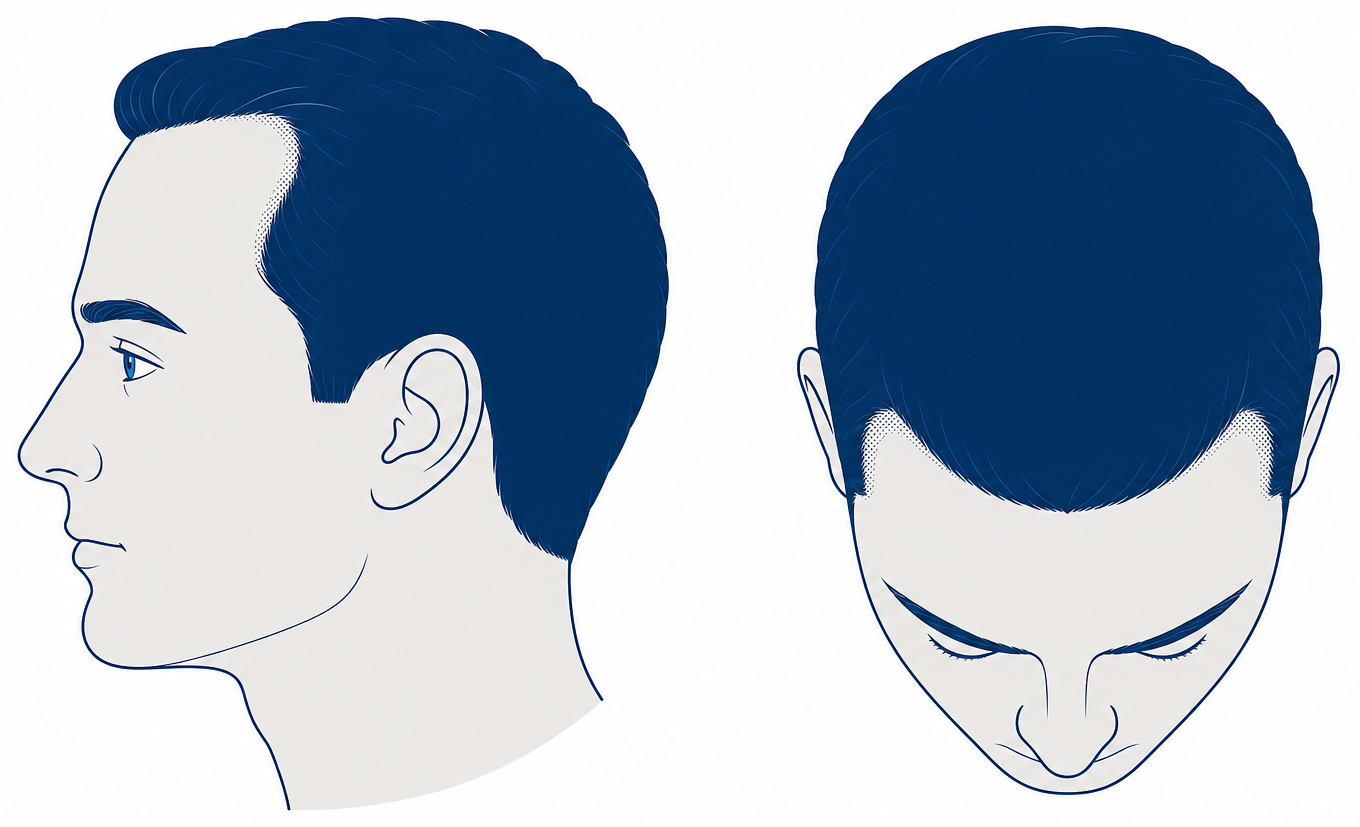

Norwood 2: slight recession at both temples

Norwood 2 means a slight, usually symmetrical notching of the hairline at both temples. The hairline has moved back by a few millimeters up to roughly a centimeter, the forehead looks a little higher, the top of the head is fully covered.

What you see is the first hint of the M shape. The remaining line still runs continuously, and no thinning is apparent at the crown. And that is exactly where the key question at this stage comes in.

Norwood 2 or just a mature hairline?

A mature hairline recedes once by about 1 to 1.5 centimeters during puberty and the early twenties, then stays stable, with no miniaturization. Norwood 2 in the sense of active hair loss keeps progressing and shows thinner, shorter, lighter hairs along the edge. This distinction reflects broad clinical consensus in practice, not the result of a single study.

On a single photo the two cannot be told apart. Only a comparison over time answers the question. Norwood 2 at 20 is possible and in itself no emergency, but it is a good reason to start documenting the progression now and have it evaluated by a dermatologist: hair loss that starts early tends on average to keep progressing.

If this stage is treated surgically at all, it involves a small area on the order of 1,000 to 1,500 grafts. That is a ballpark figure, not a promise: it depends on your individual donor area at the back of the head, it shifts with hair caliber, because fine hair covers less area per graft, and it is determined solely by a physician’s examination.

So the sensible next step is usually not a procedure. At stage 2, diagnostic clarification and, where progression is documented, medical stabilization take priority. If grafts are placed into an actively progressing environment, the transplanted hairs stay while the native hair around them keeps falling out. Surgeons describe that result as the island effect. Details on the front zone are covered in the article on receding temples.

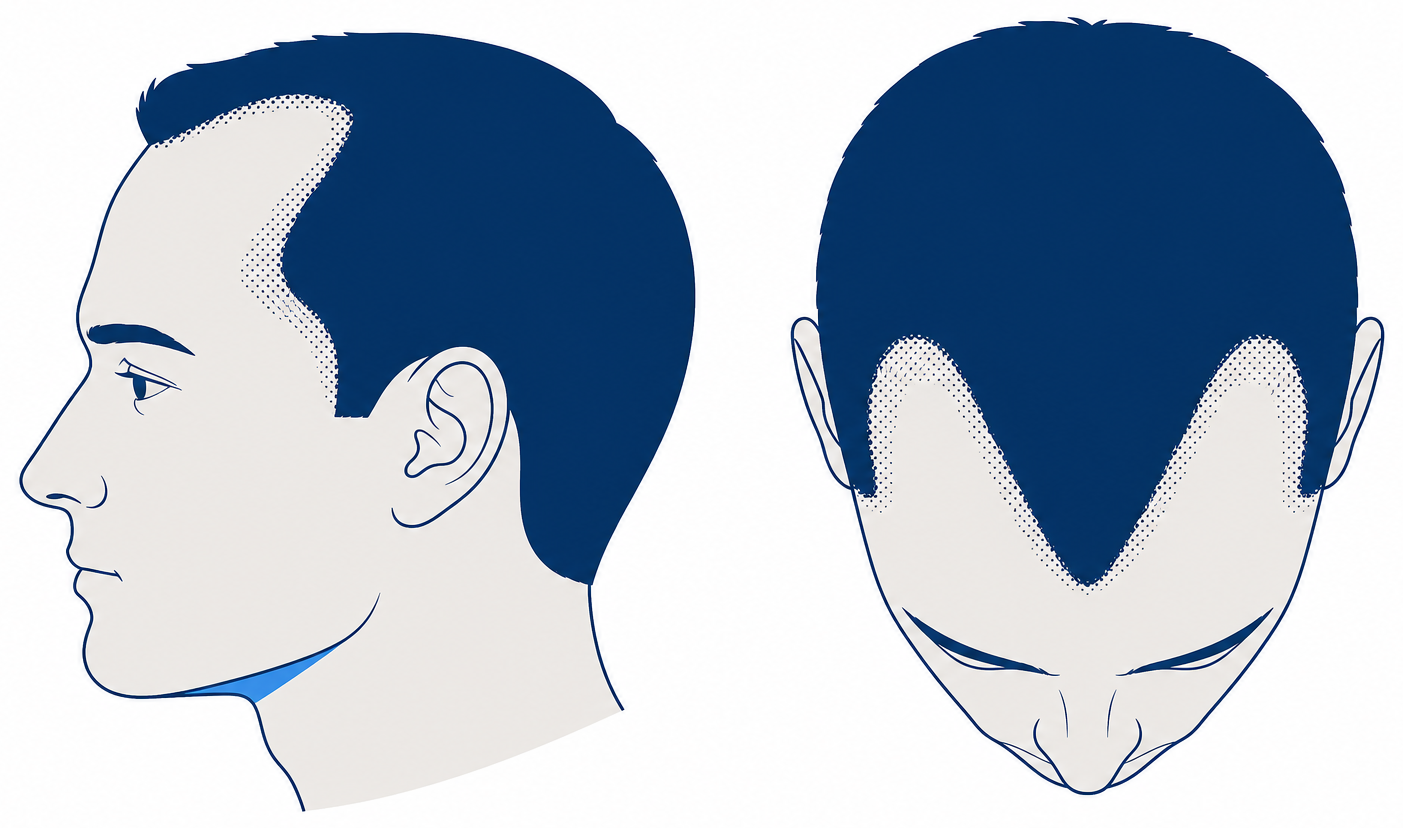

Norwood 3 and Norwood 3 vertex: the first stage relevant for treatment

By Norwood’s own definition, Norwood 3 is the first stage that counts as hair loss relevant for treatment. The temples have receded clearly and deeply in a wedge shape, the M shape is unmistakable, and the remaining line in the middle is in some cases only a narrow strip.

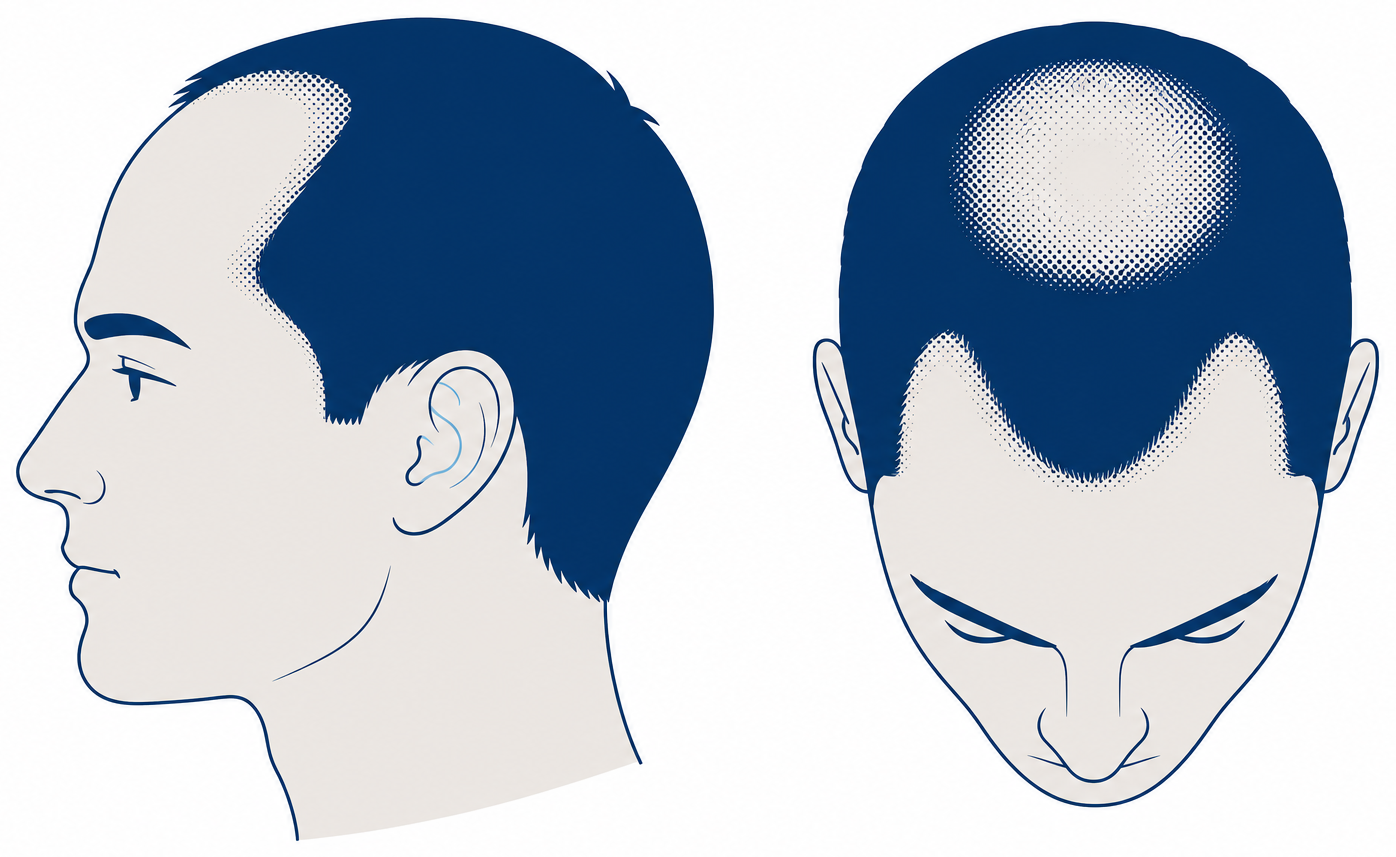

Norwood 3 vertex has to be kept clearly separate from that: the hairline has receded as in stage 3 and, on top of that, the crown is thinning, while a band of hair still stands between the two zones. On the top-down photo the scalp shows through there. That means two areas to treat instead of one.

In many cohorts Norwood 3 is one of the most frequent classifications in middle adulthood. A review in the Indian Journal of Dermatology, Venereology and Leprology summarizes roughly 30 percent of Caucasian men affected in their 30s and 40 percent in their 40s. Those, too, are cohort figures, not a schedule for any individual.

For the front zone the requirement is on the order of 1,500 to 3,000 grafts, correspondingly higher for Norwood 3 vertex because the crown is an additional area. Just as important: the donor area is limited, with fine straight hair the requirement for the same area is considerably higher than with thick or curly hair, and the binding number comes from the physician’s examination.

From here on a transplant becomes a serious option to discuss, usually best combined with stabilizing the remaining hair. The real planning conflict: hairline and crown compete for the same donor hair. How the crown region can be treated is covered in the article on crown balding.

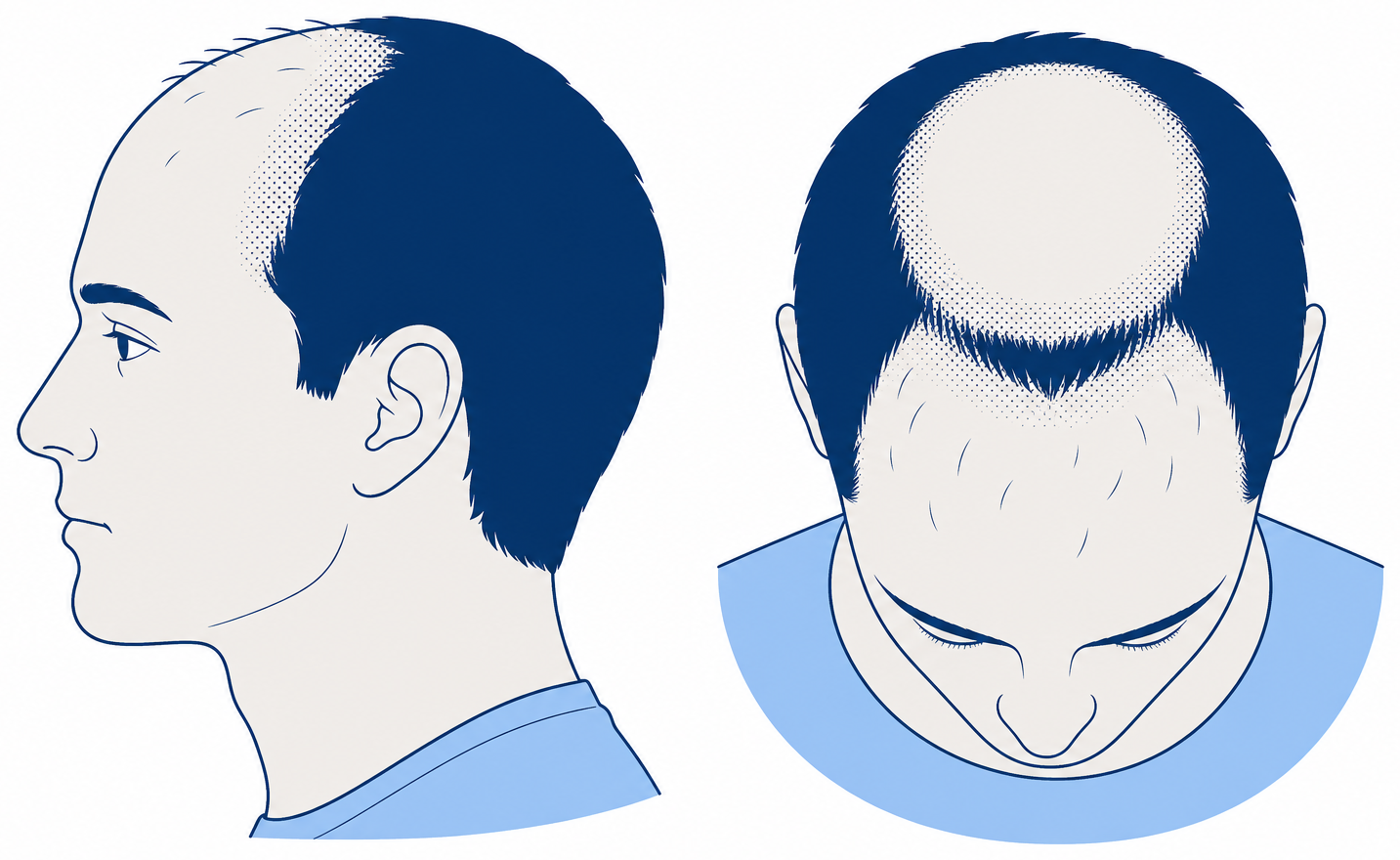

Norwood 4: forehead zone and crown, separated by a narrow band of hair

Norwood 4 means the hairline has receded substantially and the crown is clearly thinning or bald. Between the bald forehead zone and the bald crown only a narrow band of hair remains across the top of the head.

What you see is a clearly enlarged forehead, often with only sparse single hairs left in the front zone, a plainly visible bald crown area, and a separating band of hair that is getting thinner. This stage is a turning point, because the bald area typically exceeds what can be covered at full youthful density.

That turns planning into a question of priorities: frame and hairline first, because they define the face, the crown afterwards or at lower density. In the Japanese cohort study of 5,372 men the median time from one stage to the next was 4.5 years, and higher stages appeared at rising median ages. Where hair loss starts early, Norwood 4 is reached considerably sooner.

The requirement is on the order of 3,000 to 4,000 grafts for a visible improvement in both zones. This order of magnitude assumes a sufficiently dense, healthy donor area, it shifts with hair caliber, and whether it is achievable in your case is not decided by the Norwood stage but by the physician’s examination.

Can Norwood 4 still be halted? Progression can be slowed with medication, but lost area does not grow back that way. Preserving and restoring are two different things: medication holds what is there, a transplant redistributes existing hair. How much area can realistically be covered is shown in the article on possible graft numbers.

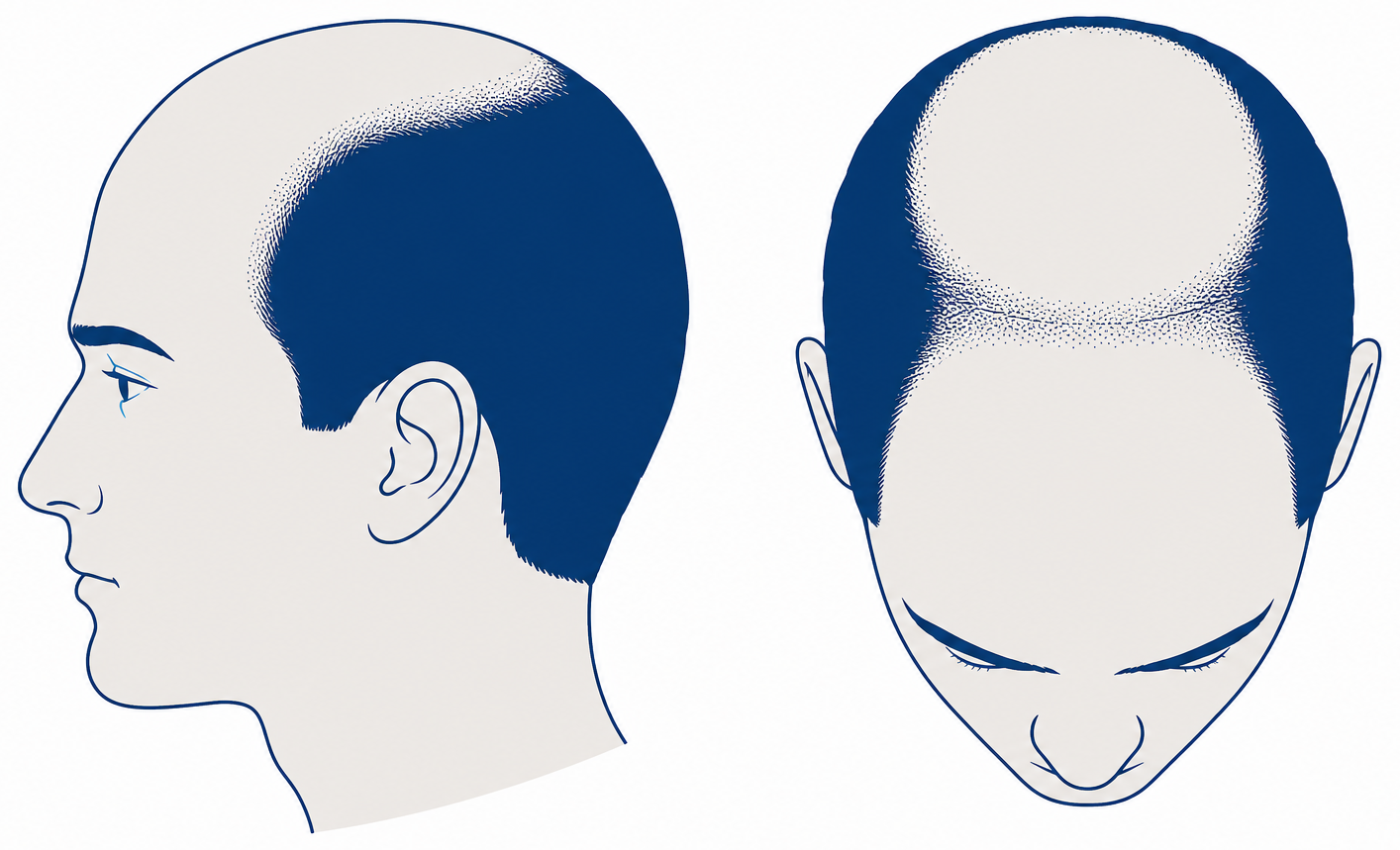

Norwood 5: the band between the zones grows thin

At Norwood 5 the forehead zone and the crown have both grown, and the separating band of hair has become distinctly narrower and thinner. The two bald regions are still separate, but visibly on their way toward each other.

What you see is a narrow, translucent strip of hair across the head, with the bald zones reaching further back and to the sides. This stage is observed mainly in later adulthood, though with wide individual variation.

The requirement is on the order of 3,500 to 4,500 grafts. From Norwood 5 on, the donor area is the limiting factor, not what you want: clinics and specialist sources consistently cite roughly 4,000 to 8,000 grafts as safely harvestable over a lifetime, often 6,000 to 7,000 as the practical upper limit. Those are practice-based reference values, not study figures.

Youthful density across the whole area is generally not achievable at this stage. What is realistic is a clear improvement through strategic distribution, planned individually by a physician. Sensible goals are an age-appropriate hairline and a closed visual frame, not the maximum covered area.

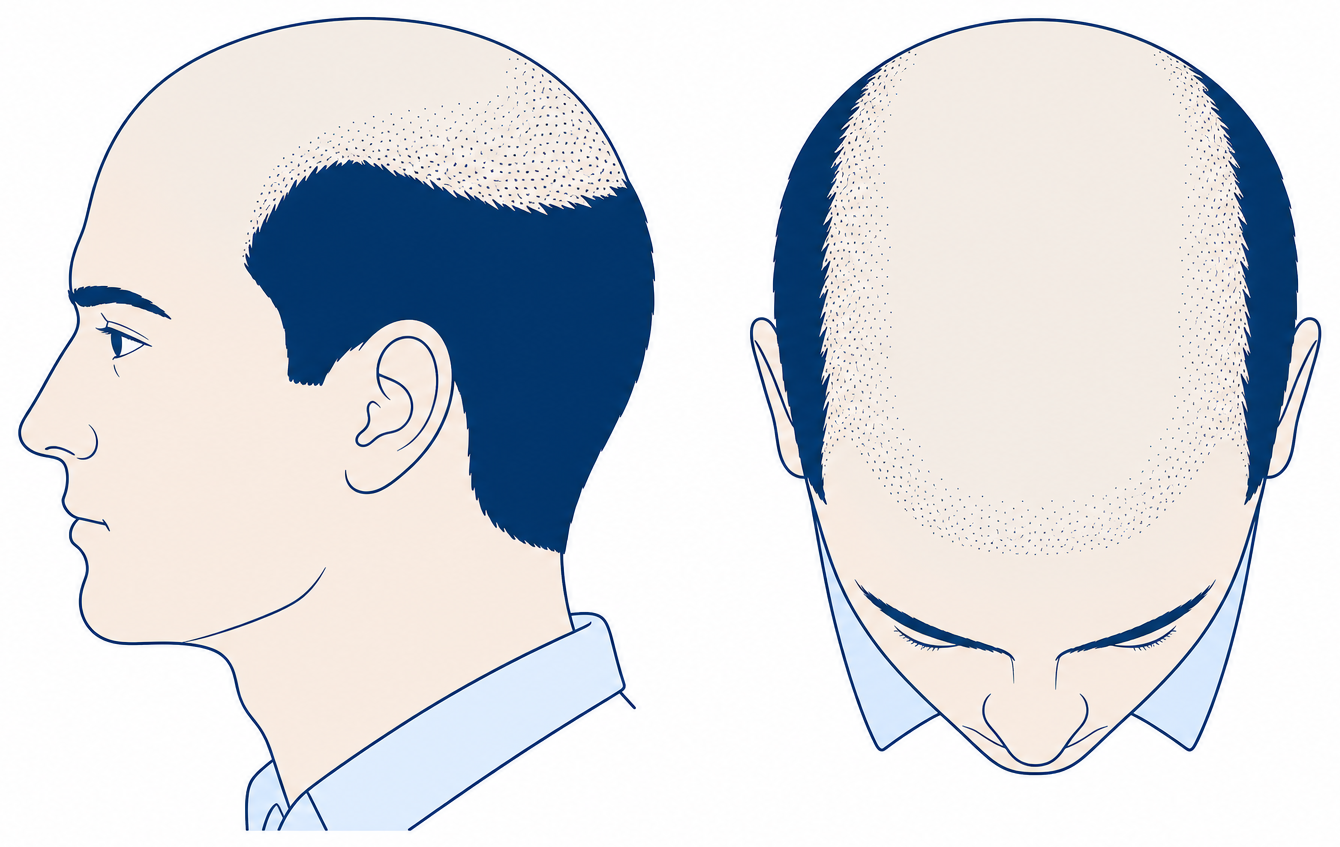

Norwood 6: forehead zone and crown are connected

Norwood 6 means the separating band of hair has disappeared and the bald forehead zone merges into the bald crown zone. What remains is a rim of hair at the sides and back that is still relatively broad.

What you see is one continuous bald area across the top of the head. It is observed mainly at older ages: Australian cohort data, summarized in review articles, show an increase in vertex or complete baldness from 31 percent among 40- to 55-year-olds to 53 percent among 65- to 69-year-olds.

The requirement is on the order of 5,000 to 6,000 grafts and in many cases therefore exceeds the available donor reserve. Even with maximum use of the donor area, the goal is a visible improvement in selected zones, not complete coverage. What is possible is decided by a physician’s assessment of donor density and hair characteristics.

So the sensible next step is to define priorities. Hairline and front zone give the face its frame back, a short haircut can be factored in from the start, and alternatives deserve an honest place in the conversation.

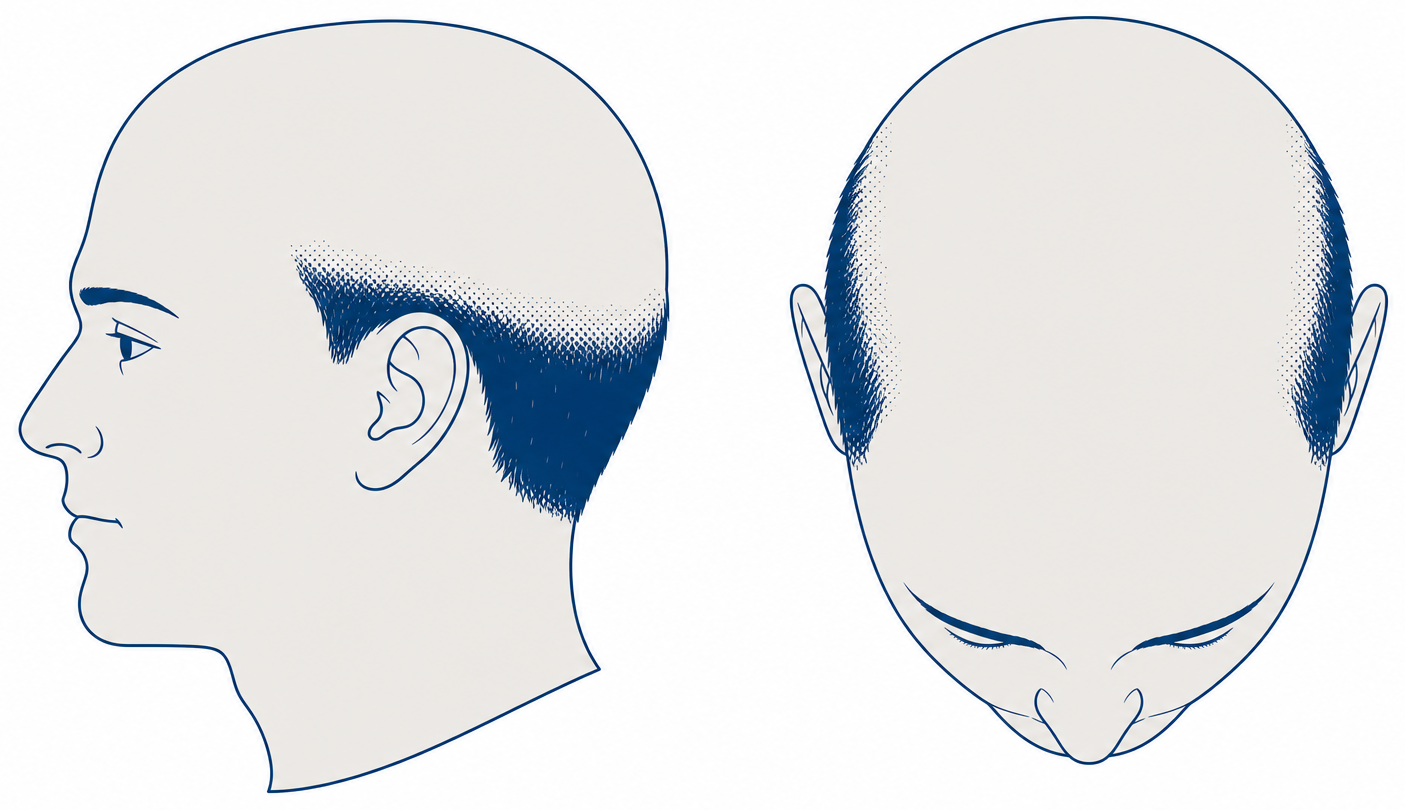

Norwood 7: nothing but the rim of hair

Norwood 7 is the final stage of the scale. Only a narrow rim of hair above the ears and at the nape is preserved, and even that rim can grow thinner. The top of the head is completely bald.

In the Japanese cohort study of 5,372 men the median age at stage VII was 52 years (95 percent confidence interval 46 to 61). With an aggressive course this stage is reached earlier; the figure describes a cohort, not an individual course.

At this point the graft requirement is not a number but a clear statement: restoring the whole area with your own hair is generally not possible, because the donor area itself is reduced. If you still want to change something, there are options for selected sub-areas depending on the findings.

To be honest about it, the non-surgical options belong here too: a very short cut or shaving as a deliberate choice, scalp micropigmentation (SMP) to visually thicken the rim, or a hair system. Whether any surgical option remains at all is something only a physician’s examination can clarify.

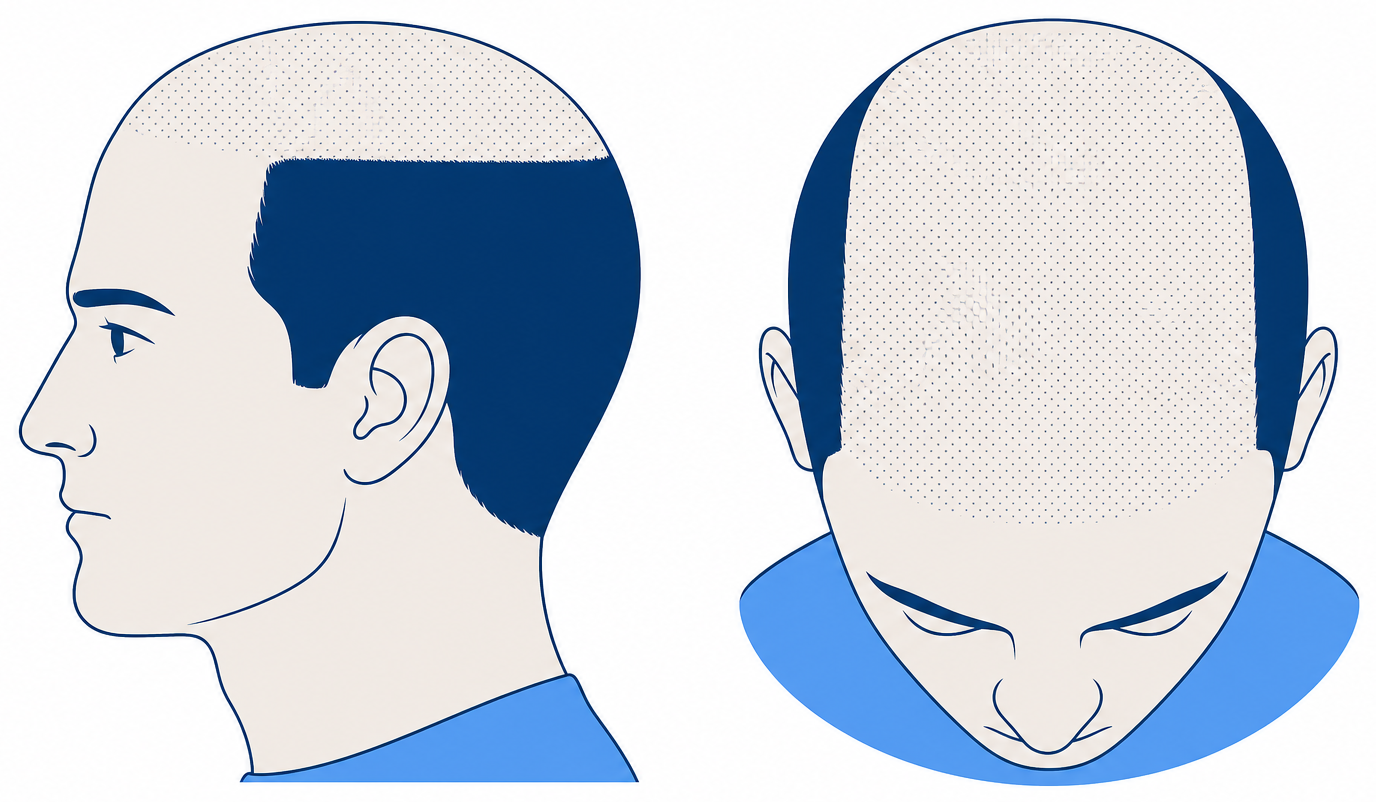

The Type A variant of the Norwood scale: when the hairline moves back evenly

In the Type A variants of the Norwood scale (IIa, IIIa, IVa, Va) the hairline moves back evenly as a whole, without the typical wedge-shaped M form. The loss advances as a single front from front to back instead of starting in two separate places.

Important and often misrepresented: the difference is not that the crown is spared. In Type A no isolated, separate bald spot forms at the crown as it does in the standard pattern. In the higher Type A grades the advancing front does reach the mid-scalp and crown region, just coming from the front rather than as a second, independent focus.

Consistent secondary sources put the Type A patterns at roughly 3 to 4 percent of cases; an independent primary study on this is not available. Men with this pattern often do not recognize themselves in the standard illustrations and therefore misjudge their stage. The hallmarks are the absence of wedge-shaped temple angles and a front hairline that has moved back evenly and high.

For planning that means: the bald area is contiguous and sits at the front, in other words where a result shapes the face. At the same time it often reaches far back, which raises the requirement. The orders of magnitude are comparable to the main stages, with the same limitations regarding donor area, hair caliber and case-by-case medical assessment. Type A is not a worse pattern, it is a different one.

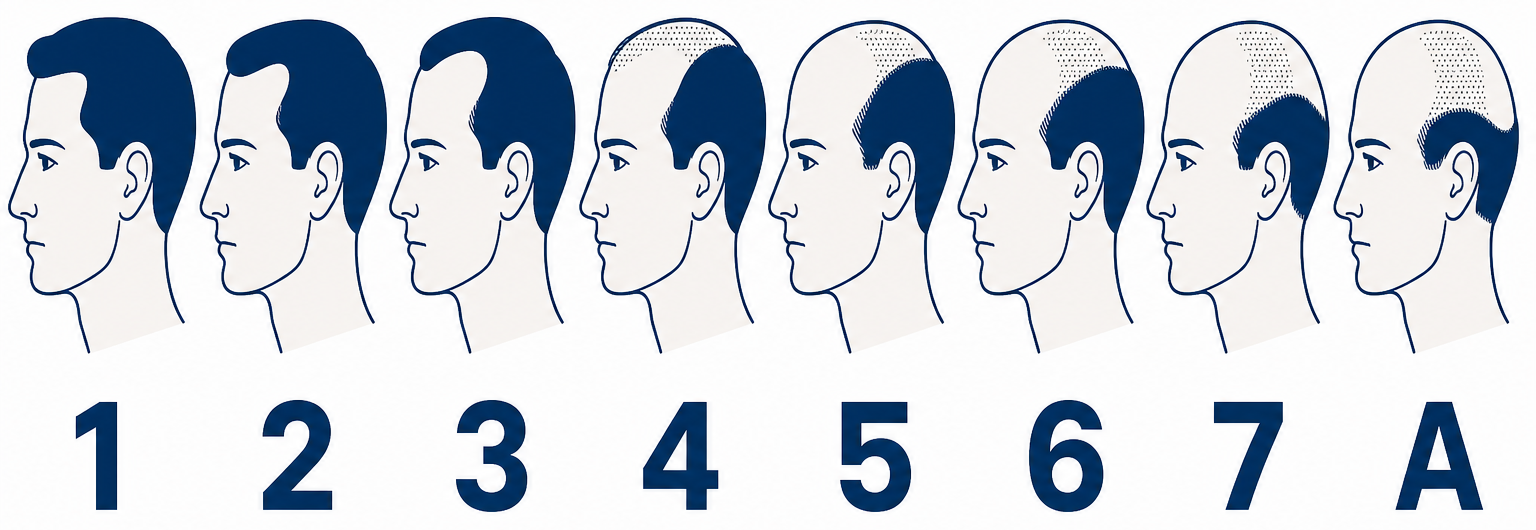

The Norwood scale at a glance: all stages in one table

The following table sums up all seven Norwood stages plus the vertex variant: what you see, from when the stage is frequently observed in study cohorts, what ballpark graft number is involved, and what the sensible next step is.

How fast do you progress on the Norwood scale?

In an analysis of 5,372 Japanese men at the Tokyo Memorial Clinic, the median time from one Norwood stage to the next was 4.5 years. The median age rose steadily with every stage, from 26 years at stage I to 52 years at stage VII.

These figures come from a single clinic and a single ethnicity, and the authors name clinic bias and the purely visual assessment as limitations themselves. So they describe a pace that is frequently observed, not a rule: an aggressive course can reach the same stage two decades earlier.

What follows from my Norwood stage? Treatment by stage

Your Norwood stage does not tell you which treatment will work, but it tells you quite precisely which expectations are realistic. As a rough rule: the earlier the stage, the more can be preserved. The later the stage, the more it becomes about restoring with limited material.

Norwood 1 to 2: track the progression, have the cause confirmed by a doctor, and stabilize with medication where progression is documented. A transplant is usually premature here, because the island effect is a real risk. Norwood 3 to 4: stabilization remains the foundation, and a transplant becomes clinically sensible when lost area is to be brought back.

Norwood 5 to 6: planning turns into prioritization, frame and hairline first, the crown at lower density or not at all. Norwood 7: your own hair is usually not enough for full coverage, and this is where alternatives belong in an open conversation. The cost question depends on the graft number and therefore on the findings; the price overview gives you a rough idea.

Medications: what finasteride and minoxidil achieve in each zone

Finasteride and minoxidil are designed for preservation and thickening, not for regrowing bald areas. The European S3 guideline (Kanti et al. 2018, JEADV) lists both as therapies with a high level of evidence. Finasteride is available by prescription only, and both require medical counseling about side effects.

When it comes to the difference between zones, precision pays off. The US approval for topical 5 percent minoxidil rests on studies of the crown, and the labeling states that effectiveness at the frontal hairline has not been established (FDA label). A 104-week study by Kanti et al. (2016, JEADV) did, however, find a significant increase in non-vellus hairs in both zones with minoxidil foam.

For your planning that means: the evidence base at the crown is historically broader, at the frontal line it is thinner but not absent. A blanket “it doesn’t work at the front” is just as wrong as expecting a bald front zone to be brought back with medication.

Does a hair transplant stop progression on the Norwood scale?

No. Transplanted hairs come from the DHT-resistant donor area and are generally preserved, but the surrounding native hair keeps following its genetic disposition. A transplant covers area, it does not change the hormonal process in the remaining region, and it does not move anyone back down the scale.

That is why accompanying stabilization is part of the plan and not optional. And that is why operating on an unstable, actively progressing pattern is risky: the island effect, as surgeons describe it when informing patients, arises precisely when the surroundings keep thinning and the transplanted zone stays put.

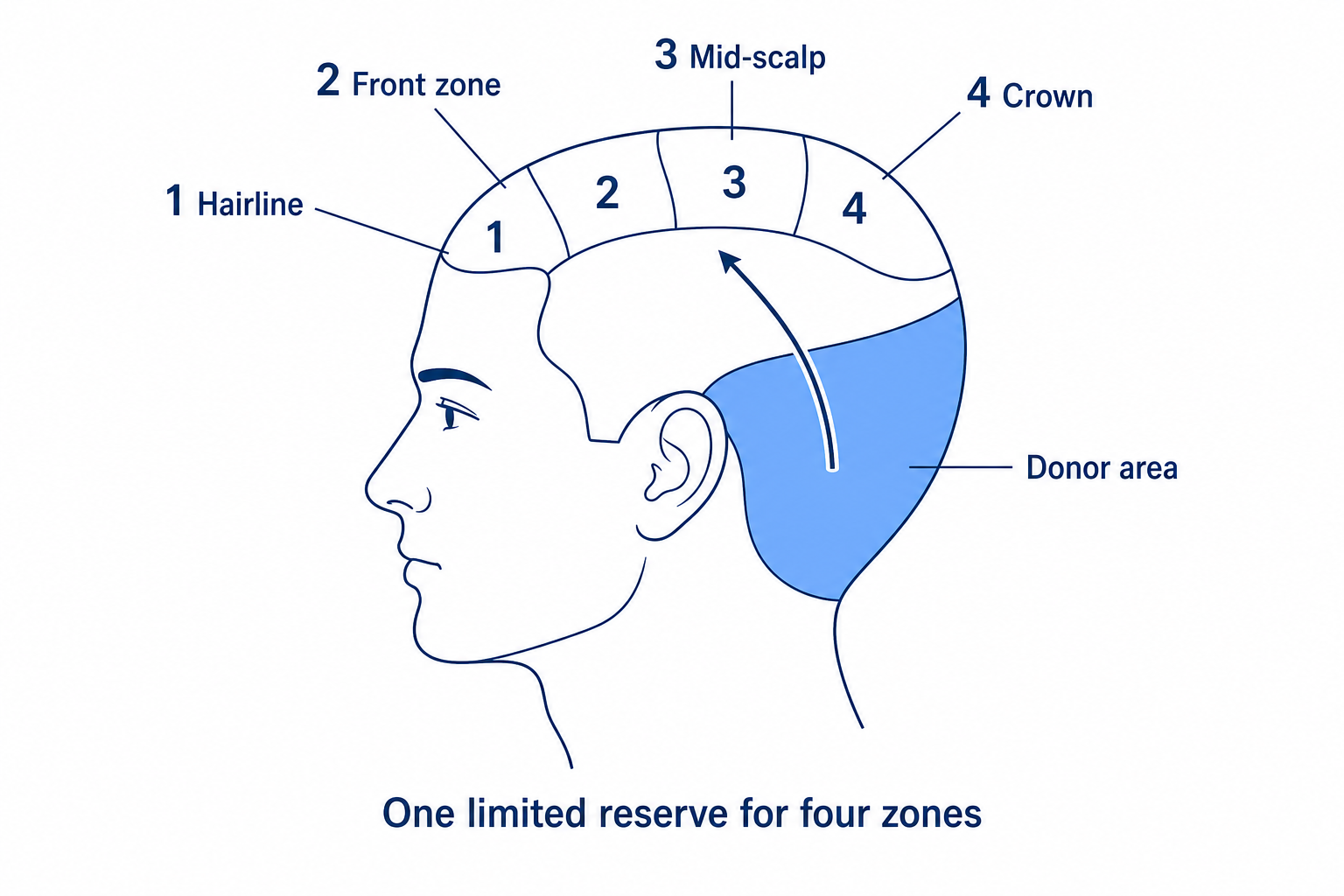

The donor area calculation: not how many grafts you need, but how many you have

The donor area at the back of the head is a finite resource. It does not grow back, a graft can only be used once, and every second session draws on the same reserve. Anyone who spends grafts generously on the crown at stage 3 will not have them for the hairline at stage 5.

The crown is the most expensive real estate on the scalp: it curves, its growth direction is demanding, and it visually swallows a lot of density. The hairline, by contrast, pays off the most per graft, because it forms the frame of the face. More on distribution is covered in the article on possible graft numbers.

And here is the sentence that puts the whole scale in perspective: the Norwood stage only describes the bald area. Whether and how well it can be covered is decided by the quality of the remaining hair, in other words donor density, hair caliber, hair structure, the contrast between hair and skin color, and head size. A Norwood 4 with thick, wavy hair is easier to plan for than a Norwood 3 with fine, straight hair.

The three biggest misconceptions about the Norwood scale

Three false assumptions about the Norwood scale come up again and again in consultations, and all three lead to wrong decisions. Here they are, side by side with the documented facts.

Limits of the Norwood scale: what it cannot do

The Norwood scale is the standard, but it has known weaknesses. It captures only the pattern, not hair density, not hair caliber, not the degree of miniaturization and not diffuse hair loss. And it depends on the observer.

The sharpest criticism is one that has actually been measured: in the study in the International Journal of Trichology (2009), agreement among 7 dermatologists and 16 residents on 43 photos was only an ICC of 0.63 to 0.68, and in a second round with 8 raters and 56 photos, repeatability after 3 months was poor as well, with no difference between specialists and residents.

Second weakness: the cohorts of 1951 and 1975 were based predominantly on Western men. The review in the Indian Journal of Dermatology, Venereology and Leprology shows differing distributions by ethnicity, for instance type II to III as the most frequent classification in Indian studies, type IV in Chinese and type III in Korean studies.

The BASP classification is regarded as the modern alternative (Lee WS, Ro BI, Hong SP et al., Journal of the American Academy of Dermatology 2007). It describes four basic types of hairline shape (L, M, C, U) plus two specific thinning types (F for frontal, V for vertex), works for men and women alike, and represents Asian hair patterns better.

The message from all this is not to discard the scale but to use it properly. What a stage means for you only emerges together with hair density, hair caliber, degree of miniaturization, donor density and the speed of progression.

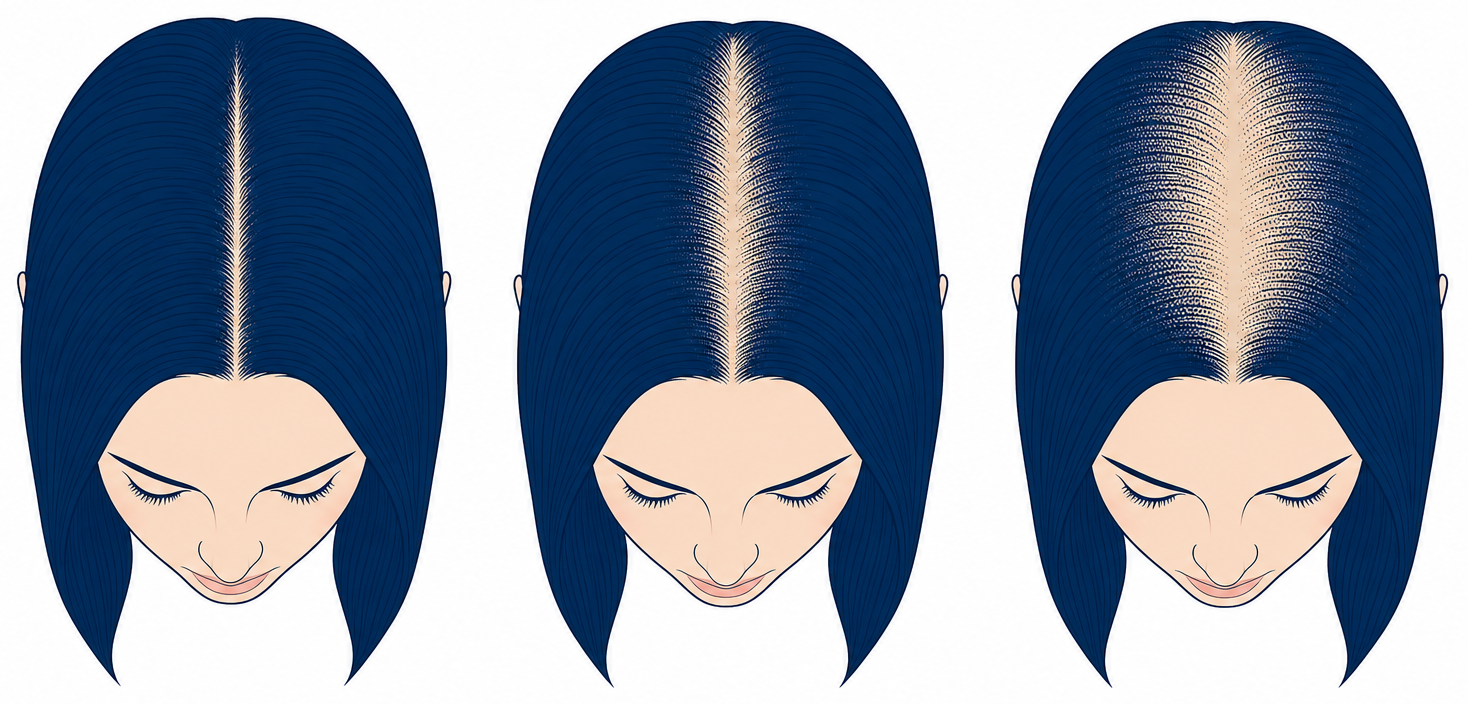

The Ludwig scale: the classification for women

The Norwood scale is a male scale and does not fit women. Female androgenetic hair loss almost never begins with receding temples but as diffuse thinning along the part, with the front hairline usually preserved. The Ludwig scale with its three grades covers this (Ludwig E., British Journal of Dermatology 1977, clinical observation of 468 women).

Ludwig I means slight but perceptible thinning at the front of the part, with a minimally widened part and a preserved front hairline. At Ludwig II the thinning is clearly visible, the scalp starts to show through along the part and volume noticeably decreases.

Ludwig III describes pronounced, widespread hair loss on the top of the head, with the front hairline usually preserved here as well. That preserved fringe of hair is the clearest difference from the male pattern. According to the European S3 guideline (Kanti et al. 2018), 42 to 50 percent of women are affected by androgenetic hair loss over the course of their lives.

Alongside Ludwig, clinical practice and research also use the Sinclair scale, a five-stage photographic system by Rodney Sinclair that maps the width of the central part more finely than three grades can. A modified version achieved good to excellent inter-rater agreement in a validation study in the Journal of the American Academy of Dermatology (ICC 0.87), considerably higher than for the Norwood scale.

In addition, E. A. Olsen described the “Christmas tree pattern”: a triangular thinning zone tapering toward the front with a widened central part. According to a review on female hair loss, this frontal emphasis is the most common female pattern, followed by central thinning similar to the male pattern.

A woman looking for her own Norwood stage routinely underestimates her situation and overlooks other causes. Diffuse thinning can be androgenetic, but it can equally arise from iron deficiency, a thyroid disorder, nutrient deficiencies, hormonal changes or telogen effluvium. These forms need a medical workup of the cause.

A receding front hairline in a woman is a reason for dermatological evaluation in its own right, not least because of scarring alopecias. The article on hair loss in women gives an overview of the female patterns.

Having your Norwood stage determined by a doctor

A self-assessment on the Norwood scale is enough for a first impression. For a decision you need four things that no picture comparison can provide: certainty that this really is androgenetic hair loss, the degree of miniaturization, the donor density actually present at the back of the head, and the quality of the hair itself.

That is exactly what a medical hair analysis delivers. It determines the stage, distinguishes pattern hair loss from diffuse hair loss, assesses donor area and hair caliber, and derives a realistic framework from all of it. At Elithair, assessing the donor area and dividing up the recipient zones is the step that comes before any graft number.

A brief, factual note on technique: extraction is performed as FUE from the DHT-resistant donor area, implantation as DHI, which is included as standard. FUE is the extraction technique, DHI the implantation technique; they are not alternatives to one another. If the examination shows that a procedure does not make sense right now, that too is a useful result.

When the Norwood scale does not fit: warning signs and differential diagnosis

The Norwood scale describes androgenetic pattern hair loss and nothing else. If hair falls evenly across the whole head, in round patches, suddenly, or together with skin symptoms, then the scale is the wrong tool and a dermatological evaluation is needed.

The quick distinctions: a mature hairline is stable and normal. Telogen effluvium causes diffuse shedding, often after illness, a deficiency, stress or a new medication, and follows the logic of the hair cycle. Alopecia areata shows round patches, traction alopecia comes from the pull of tight hairstyles, and scarring forms come with redness, scaling, shiny skin and the loss of the follicular openings.

No visual scale can tell you what is causing hair loss in an individual case. The article on the causes of hair loss gives an overview of the possible triggers, and the practical steps that follow are covered under what to do about hair loss.
